Link Class

A Link is a Part that represents a relationship between Nodes.

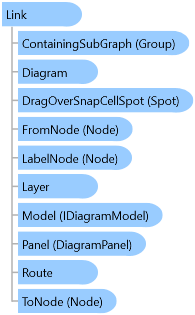

Object Model

Syntax

[ContentProperty("Content")]
[Localizability(LocalizationCategory.None, Readability=Readability.Unreadable)]
[StyleTypedProperty(Property="FocusVisualStyle", StyleTargetType=System.Windows.Controls.Control)]
[XmlLangProperty("Language")]
[UsableDuringInitialization(true)]
[RuntimeNameProperty("Name")]
[UidProperty("Uid")]
[TypeDescriptionProvider(MS.Internal.ComponentModel.DependencyObjectProvider)]
[NameScopeProperty("NameScope", System.Windows.NameScope)]
public class Link : Part

Remarks

A link connects the FromNode to the ToNode.

The rendering of a link is determined by the Diagram's LinkTemplate. This DataTemplate may be a simple LinkShape. However it is usually a LinkPanel, which supports child elements that act as arrowheads or text labels or other decoration on the link.

A link may also have a LabelNode. In this case there is a separate Node that is associated with the link. The node's Node.IsLinkLabel property will be true. It is usually positioned at the mid-point of the link. It supports its own link connections and may be independently selected or moved. The label node may be a Group, in which case all of its member nodes are link label nodes that are positioned by the LinkPanel.

You may not apply any transforms to a Link; that is reserved to GoXam for future use.

Inheritance Hierarchy

System.Object
   System.Windows.Threading.DispatcherObject
      System.Windows.DependencyObject
         System.Windows.Media.Visual
            System.Windows.UIElement
               System.Windows.FrameworkElement
                  System.Windows.Controls.ContentPresenter
                     Northwoods.GoXam.Part
                        Northwoods.GoXam.Link
